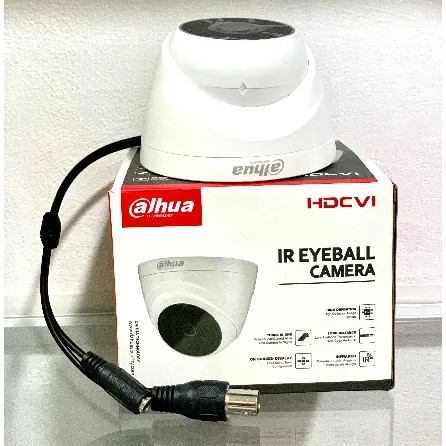

Experience the 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions. Other special features this camera has include
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect.
The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Camera
Image Sensor
1/2.7″ CMOS
Effective Pixels
1920(H)×1080(V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination
0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio
More than 65dB
IR Distance
Up to 20m (66feet)
IR On/Off Control
Auto / Manual
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
3.6mm (2.8mm, 6mm Optional)
Max Aperture
F1.85
Angle of View
H: 93° (103°, 54.7°)
Focus Control
N/A
Close Focus Distance
800mm (500mm, 2000mm)
31.50” (19.69″, 78.74”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution
1080P (1920×1080)
Frame Rate
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night
Auto (ICR) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
2D
White Balance
Auto / Manual
Smart IR
Auto / Manual
